ACL 2位3通直動式通用電磁閥 351
ACL 2位3通直動式通用電磁閥 351
詳細介紹

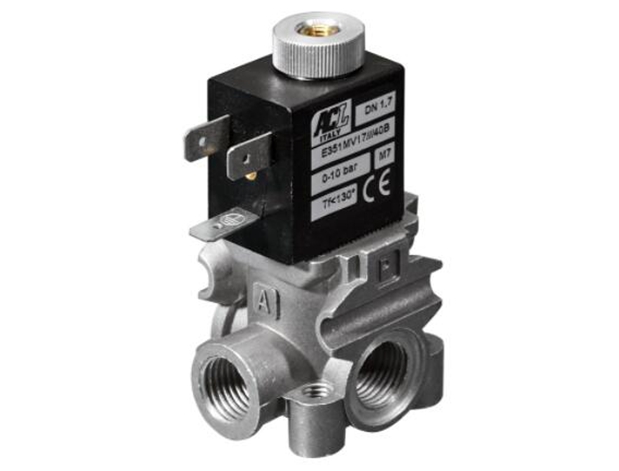

ACL 2位3通直動式通用電磁閥 351

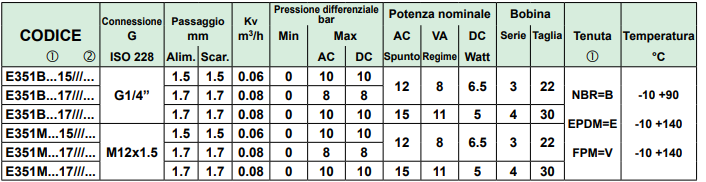

| 3/2 Direct Acting NO | ||||||||||||||
| TYPE | PORT SIZE | ORIFICE | Kv | DIFFERENTIAL PRESSURE ΔP bar | NOMINAL POWER | COIL | SEAL | TEMPERATURE RANGE | ||||||
| mm | m3/h | MIN | MAX | AC-VA | DC | width | TYPE | |||||||
| 1-2 | 2-3 | AC | DC | INRUSH | HOLDING | W | °C | |||||||
 351 | G 1/4 M12X1,5 | 1.5 1.7 1.7 1.5 1.7 1.7 | 1.5 1.7 1.7 1.5 1.7 1.7 | 0.06 0.08 0.08 0.06 0.08 0.08 | 0 0 0 0 0 0 | 10 8 10 10 8 10 | 10 8 10 10 8 10 | 12 12 15 12 12 15 | 8 8 11 8 8 11 | 6.5 6.5 5 6.5 6.5 5 | 22 22 30 22 22 30 | 3 3 4 3 3 4 | NBR EPDM FPM | -10 +90 -10 +140 -10 +130 |
