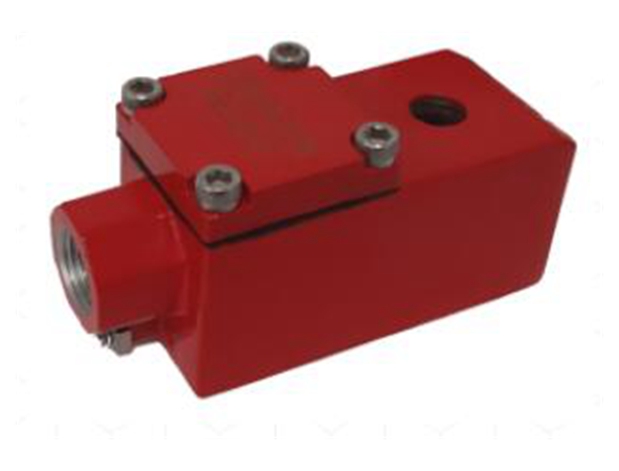

ACL COILS線圜 A6 - X6 ATEX

ACL COILS線圜  A6 - X6 ATEX

說明

經認證用于危險區域的防爆線圈:

ATEX II 2GDEx d IIC T6或T5或T4 Gb IP66

Ex tb IIC T85°C或T100^C或T135°C Db IP66

CESI 03 ATEX 344/02

Tamb- 40°C++35*C (T6)或+50°C (T5 )或+60°C

功能

外殼:紅色合金( A6系列)

不銹鋼( X6系列)

電氣連接: 1/2"NPT ( M20x1根據要求)

環境溫度: -40°C++35°C( T6)、+50°C ( T5)、+60°C ( T4 )

構造

-專為極端環境條件而設計

-綜合接線盒和水平電纜入口

-提供浪涌抑制器

-雙氣閥

DESCRIPTION

Explosion proof coil certified for hazardous area.

ATEXII 2GDExd IIC T6 orT5 or T4 Gb IP66

Ex tb IIC T85°C or T100°C or T135°C Db IP66

CESI 03 ATEX 344/02

Tamb -40°C一+35°C(T6) or +50°C(T5) or +60°C(T4)

FEATURES

Housing: Red colour alloy (series A6)

Stainless steel (series X6)

Electrical connection: 1/2”NPT (M20x1 on request)

Ambielnt temperature: -40°C 一+35°C(T6), +50°C(T5), +60°C(T4)

CONSTRUCTION

- Designed for extreme environmental condition

- Integrated terminal box and horizontal cable entry

- Surge suppressor provided

Dual gaske

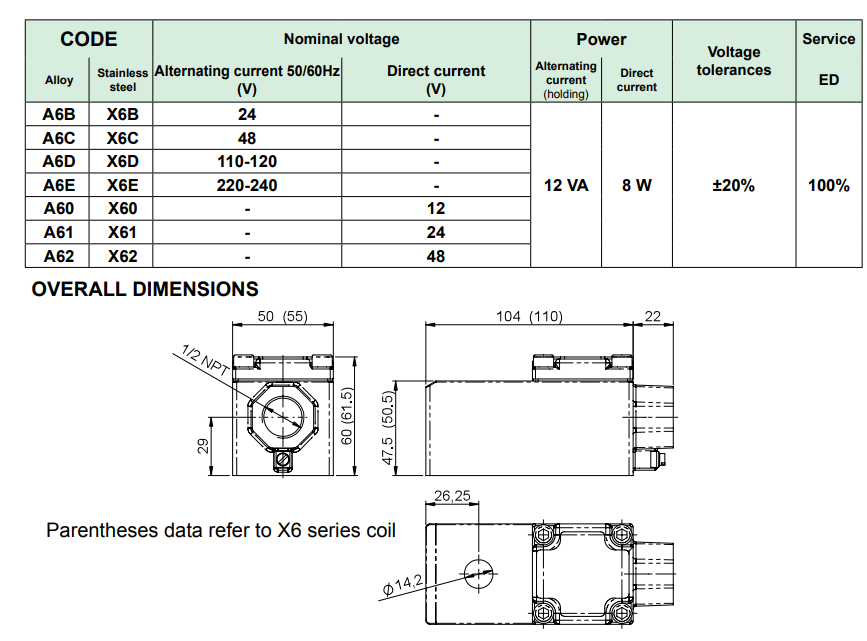

Coils
TYPE	CODE		ALTERNATE CURRENT FREQUENCY 50/60Hz VOLTAGE VOLT	DIRECT CURRENT VOLTAGE VOLT	POWER		VOLTAGE TOLLERANCE		CONNECTOR	ED SERVICE
	F Insulation Class	H Insulation Class			AC VA	DC Watt	AC	DC
Series A6 - X6 ATEX	A6B - X6B A6C - X6C A6D - X6D A6E - X6E A60 - X60 A61 - X61 A62 - X62		24 48 110-120 220-240 - - -	- - - - 12 24 48	12VA	8				100%
