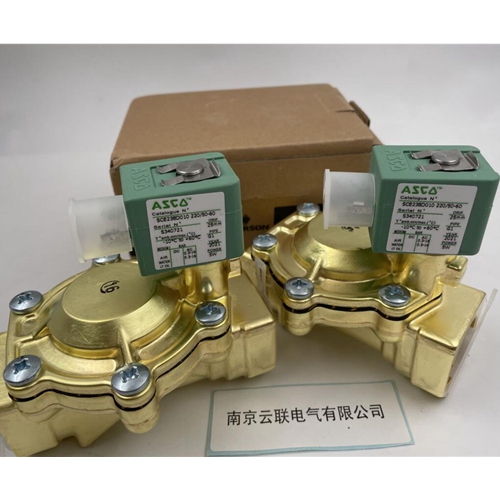

阿斯卡ASCO低功耗電磁閥 Low power solenoid valveSCE238D010

阿斯卡ASCO低功耗電磁閥 Low power solenoid valveSCE238D010

低功耗電磁閥，紐曼蒂克SCE238D010應用于醫療機械、太陽能、清洗設備、食品機械、燃燒器、受電控信號后能自動開啟或關閉閥門，實現對管道中流體介質的通斷或流量調節控制，從而對系統中的溫度、流量控制

產品特性

小操作壓差A(yù)P 0,3/0,5 bar

水、空氣和惰性氣體自動控制雙路閥與所使用的密封材料相匹配的其他氣體/液體

●磁頭交直流互換性

●電磁閥滿足所有相關的歐盟指令

與流體接觸的材料(=) Ensure兼容的液體接觸材料驗證

身體黃銅嗎內部部件為不銹鋼和黃銅彈簧不銹鋼

隔膜和閥瓣NBR

密封和引|導閥瓣FPM

陰影線圈銅

電特性.

線圜絕緣等級F

連接器鏟插頭(電纜06 - 8毫米或06 - 10毫米)

連接器規格

用于功率線圈:4 W/6,9 W DIN 43650, 11 mm,工業標準B

電源線固:5/6,9W-8/9W-12,5/9W ISO 4400 / EN 175301-803 ,表格A

電氣安全IEC 335

電氣外殼防護模制IP65 (EN 60529)

標準電壓DC(=): 24V - 48V

交流(~):24V - 48V- 115V - 230V / 50hz

EFG551H417 WT8551A001MS 8320G174 EF8320G174  8320G184 EF8320G184 8320G176 EF8320G176 EF8320G203

EF8320G202 EF8320G200 HT8316G64 HT8316G66 EF8210G1 EF8210G001

EFG551A001MS G551A001MS EFG551A002MS G551A002MS EFG551H401MO G551B401MO EF8551A001MS SCG551A001MS

G551A001MS SCG551A002MS G551A002MS WSNF8327B102 WSNF8327B112 SCG531D001MS SCG531D002MS 238610-058-D

238714-158-D 400425-117 SP-COU-24VDC EF8320G186 8320G186 EF8210G089 HB8320G174 EF8340G1 EF8342G001

SCG531D001MS SCG531D002MS VCEFG551H417

Low power solenoid valve, Neumann Tec SCE238D010, is applied to medical machinery, solar energy, cleaning equipment, food machinery, burners, and can automatically open or close the valve after receiving an electrical control signal, achieving on/off or flow regulation control of the fluid medium in the pipeline, thereby controlling the temperature and flow in the system

Product characteristics

Small operating pressure difference AP 0,3/0,5 bar

Water, air, and inert gas automatic control dual valve matched with other gases/liquids using sealing materials

● Magnetic head AC/DC interchangeability

The solenoid valve meets all relevant EU directives

Verification of Liquid Contact Materials Compatible with Fluid Contact Materials (=) Ensure

Is the body brass? The internal components are stainless steel and brass spring stainless steel

Diaphragm and Disc NBR

Sealing and guide valve disc FPM

Shadow coil copper

Electrical characteristics

Insulation level F of wire

Connector shovel plug (cable 06-8 mm or 06-10 mm)

Connector specifications

For power coils: 4 W/6,9 W DIN 43650, 11 mm, industrial standard B

Power cord fixation: 5/6,9W-8/9W-12,5/9W ISO 4400/EN 175301-803, Table A

Electrical safety IEC 335

Electrical enclosure protection molded IP65 (EN 60529)

Standard voltage DC (=): 24V -48V

AC (~): 24V -48V -115V -230V/50Hz
