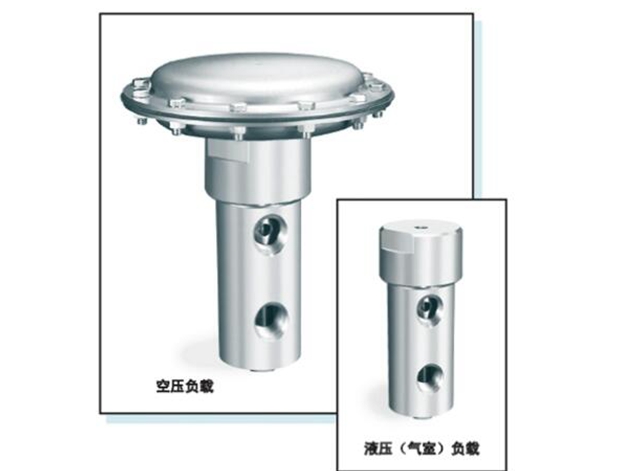

TESCOM液壓閥hydraulic valve54-2800

TESCOM液壓閥hydraulic valve54-2800

液壓/高流量/高壓

最大入口壓力 5,000 PSIG/出口壓力范圍 5,000 以下

減壓調節器

54-2800 系列

技術規格

? 工作參數

壓力等級根據 ANSI/ASME B31.3標準

最大額定入口壓力 . . . . . . . . . . . . . . . . .5000 PSIG

出口壓力范圍 . . . . . . . . . 50-1500, 200-5000 PSIG

設計試驗壓力為 . . . . . . . . . . . . 150% 最大額定壓力

泄漏（最大值） . . . . . . . . . . . . . . . . . . . 2 滴/分鐘,

條件：粘度 150 S.U.S. 壓力 2500 PSIG

工作溫度1 . . . . . . . . . . . . . . . . . -40° F 至 +225° F

(-40° C 至 +107° C)

額定流量：

主閥. . . . . . . . . . . . . . . . . . . . . . . . . . . Cv = 8.0

排氣閥. . . . . . . . . . . . . . . . . . . . . . . . . Cv = 6.5

TESCOM hydraulic valve 54-2800

Hydraulic/High Flow/High Pressure

Maximum inlet pressure 5000 PSIG/outlet pressure range below 5000

Pressure reducing regulator

Yunlian Electric Technology Consulting

Quotation inquiry [email protected]

TESCOM hydraulic valve

TESCOM hydraulic valve 44-5200

TESCOM hydraulic valve 54-2100

TESCOM hydraulic valve 54-2200

TESCOM hydraulic valve 54-2700

TESCOM hydraulic valve 54-2800

54-2800 series

technical specifications

Operating parameters

Pressure rating according to ANSI/ASME B31.3 standard

Maximum rated inlet pressure 5000 PSIG

Outlet pressure range 50-1500, 200-5000 PSIG

The design test pressure is 150% maximum rated pressure

Leakage (maximum value) 2 drops/minute,

Condition: Viscosity 150 S.U.S. Pressure 2500 PSIG

Working temperature 1- 40 ° F to+225 ° F

(-40 ° C to+107 ° C)

Rated flow rate:

Main valve Cv = 8.0

Exhaust valve Cv = 6.5
