GF 變送器 transmitter 3-9900-1

GF 變送器 transmitter 3-9900-1儀表

Signet 9900變送器

特點

Sigpet 900變送器提供單通道輸入多參數，包括流量，pHORP, 電導率電阻率，壓力，溫度，液

位，鹽度和其它輸出4-20mA信號的傳感器。大尺寸(3.90”x3.90”)自感應背光顯示等特點使其具有

一目了然”視覺效果，是傳統變送器可視距離的45倍。高亮度的顯示和大號字體降低了 誤讀曲解顯示

值的風險。分行顯示測量單位主測量值和第二測量值以及“撥碼盤”式數碼棒狀圖。

90提供盤面安裝和現場安裝兩個版本。這兩個版本供電皆為12 - 32 VDCQ4VDC額定值。90可以給部分兼容傳感器供電。靈活的，可插拔模塊設計更易于滿足不斷變化的用戶需求。可選模塊包括繼電器橫塊， 直接電導率電阻率模塊，HCOMD和PC coM設定工具。變送器可以使用默認設定快速簡單地完成組態或自定義標簽,可調的zui小或ul大撥碼盤設定，測量單位和小數點位數選擇等。

顯示范圍

pH 0.00- 15.00 pH

pH溫度-99。C-350° C-146 。F-662。F

ORP -1999- 1999.9 mV

流量0.0000 99999單位每秒，分鐘，小時或天

累積量0.00- 9999999單位 云聯電氣  技術咨詢 報價  [email protected]

電導0.0000- 9999 μs, mS, PPM和PPB (TDS), k2, MO

電導溫度-99。C-350° C - 146。F- 662F

溫度-99°C-350° C -146。F-662 °F

壓力-40- 1000 psi

液位-9999 - 9999 m, cm, ft, in, %

體積量0 - 9999 cm3, m3, in3, ft3, gal, L, 1b, kg. %

鹽度0- 100 PPT

產品編號訂貨代碼描述

9900 云聯電氣 技術支持

主單元. 單通道，多參數，4-20mA. 集電極開路輸出，直流電源

3. 9900-1P 159 001 695 9900盤面安裝變送器

3- 9900-1 159 001 696 9900現場安裝變送器

可選附件模塊

39900.900 159 001 698繼電器模塊- 2路DCR (干接點繼電器)

3- 900904 159 001 699直接電導/電阻率模塊

3-9900.395 159 001 697 H COMM模塊

GF transmitter 3-9900-1 instrument

Signet 9900 transmitter

characteristic

The Sigpet 900 transmitter provides single channel input with multiple parameters, including flow rate, pHORP, conductivity and resistivity, pressure, temperature, and liquid

Sensors that output 4-20mA signals for temperature, salinity, and other parameters. The large size (3.90 "x3.90") self sensing backlight display and other characteristics make it possess

The visual effect is clear at a glance, which is 45 times the visible distance of traditional transmitters. High brightness display and large font size reduce misreading and misinterpretation display

The risk of value. Branches display the primary and secondary measurement values of the measurement unit, as well as a "dial dial" digital bar chart.

90 offers two versions: disk installation and on-site installation. Both versions are powered with 12-32 VDCQ4VDC ratings. 90 can power some compatible sensors. Flexible and pluggable module design makes it easier to meet constantly changing user needs. Optional modules include relay cross blocks, direct conductivity resistivity modules, HCOMD, and PC CoM setting tools. The transmitter can use default settings to quickly and easily complete configuration or customize labels, adjustable Zui small or ul large dial settings, measurement units and decimal places selection, etc.

Display Range

pH 0.00- 15.00 pH

PH temperature -99. C-350° C-146 。 F-662。 F

ORP -1999- 1999.9 mV

Traffic 0.0000 99999 units per second, minutes, hours or days

Accumulated quantity 0.00-9999999 units

Conductivity 0.0000-9999 μ s. MS, PPM, and PPB (TDS), k2, MO

Conductivity temperature -99. C-350° C - 146。 F- 662F

Temperature -99 ° C-350 ° C-146. F-662 °F

Pressure -40-1000 psi

Liquid level -9999-9999 m, cm, ft, in,%

Volume 0-9999 cm3, m3, in3, ft3, gal, L, 1b, kg.%

Salinity 0-100 PPT

Product Number Ordering Code Description

9900 Yunlian Electrical Technical Support

Main unit Single channel, multi parameter, 4-20mA Open collector output, DC power supply

3. 9900-1P 159 001 695 9900 Disk Mount Transmitter

3-9900-1 159 001 696 9900 Field Mount Transmitter

Optional accessory module

39900.900 159 001 698 Relay module -2-way DCR (dry contact relay)

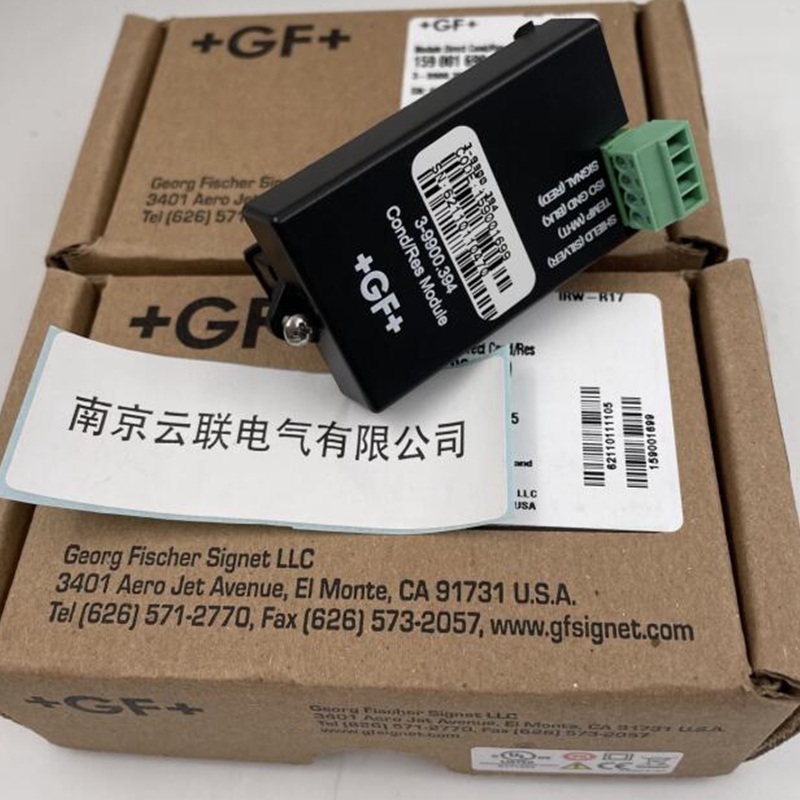

3-900904 159 001 699 Direct Conductivity/Resistivity Module

3-9900.395 159 001 697 H COMM module
