         電源模塊接線方式與輸出功率的關系

        電源模塊接線方式與輸出功率的關系

        電源模塊接線方式與輸出功率的關系

        詳細介紹

        Power module123.jpg


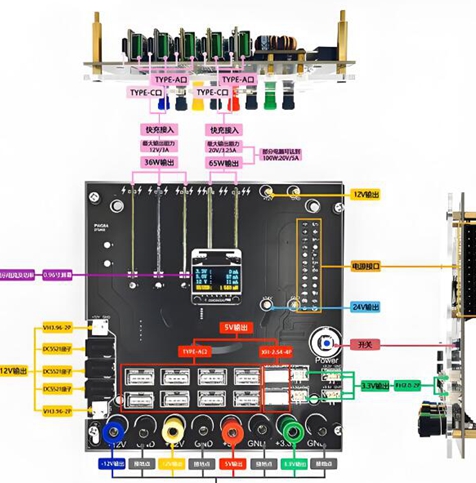

        電源模塊接線方式與輸出功率的關系
        電源模塊作為電子設備的能量供應核心,其接線方式與輸出功率之間存在著緊密的聯系。了解并掌握這種關系,對于優化電子設備的性能、提高能源利用效率具有重要意義。
        首先,從基本的串聯接線方式來看。在某些情況下,可能會采用多個電源模塊串聯來提高輸出電壓。然而,這種方式需要注意電源模塊的一致性和耐壓能力。如果串聯的電源模塊輸出電壓不一致,可能會導致電壓較高的模塊承擔較大的負載,從而影響其壽命和輸出功率的穩定性。而且,串聯后的總輸出電流通常受限于最小輸出電流的那個模塊,因?yàn)殡娏髟诖?lián)電路中是處處相等的。此外,串聯接線還可能增加線路電阻,導致額外的功率損耗。
        再看并聯接線方式。并聯多個電源模塊是為了增加輸出電流,從而提高輸出功率。但并聯時必須保證各電源模塊的輸出電壓相同,否則會出現電流不均衡的現象。例如,輸出電壓稍高的模塊會輸出較大的電流,而輸出電壓較低的模塊可能輸出電流較小,甚至可能出現電流倒灌的情況,這不僅會影響輸出功率,還可能損壞電源模塊。為了實現并聯模塊的均流,可以采用一些特殊的電路設計,如串聯電阻法、二極管并聯法、電流均流并聯法等。串聯電阻法通過在各模塊輸出端串聯適當阻值的電阻來限制電流,但會增加系統功耗;二極管并聯法利用二極管防止電流逆流,同時也能在一定程度上均衡電流;電流均流并聯法使用特定均流 IC 設計電源并聯輸出,能實現精確的均流控制,但成本相對較高。
        以開關電源為例,在并聯多個開關電源輸出時,還需要注意線纜長度和接口保護等問題。線纜長度不一致會導致阻抗變化和電壓降不同,影響輸出的穩定性。而對接線纜接口進行保護是為了防止在高功率、高電壓和高電流下,接頭松動產生弧光,以及避免接頭接觸不良、絕緣材料老化等問題,這些問題都可能導致輸出功率下降或出現安全隱患。
        另外,對于一些具有特殊功能的電源模塊,如具有熱插拔功能的模塊,其接線方式也有特殊要求。在熱插拔過程中,需要通過特定的電路設計來確保模塊插入或拔出時不會對系統母排電壓產生影響,避免造成系統電壓跌落,影響其他設備的正常工作。

        The relationship between power module wiring method and output power

        As the energy supply core of electronic devices, the power module has a close relationship between its wiring method and output power. Understanding and mastering this relationship is of great significance for optimizing the performance of electronic devices and improving energy efficiency.

        Firstly, let's take a look at the basic series connection method. In some cases, multiple power modules may be connected in series to increase the output voltage. However, this approach requires attention to the consistency and voltage resistance of the power module. If the output voltage of the series connected power modules is inconsistent, it may cause the modules with higher voltage to bear larger loads, thereby affecting their lifespan and output power stability. Moreover, the total output current after series connection is usually limited by the module with the minimum output current, as the current is equal everywhere in the series circuit. In addition, series connection may also increase line resistance, resulting in additional power loss.

        Let's take a look at the parallel connection method again. Parallel connection of multiple power modules is to increase output current and thus improve output power. But when connecting in parallel, it is necessary to ensure that the output voltage of each power module is the same, otherwise there will be current imbalance. For example, modules with slightly higher output voltage may output larger currents, while modules with lower output voltage may output smaller currents or even experience current backflow, which not only affects output power but may also damage the power module. In order to achieve current sharing in parallel modules, some special circuit designs can be used, such as series resistance method, diode parallel method, current sharing parallel method, etc. The series resistance method limits current by connecting resistors of appropriate resistance values in series at the output terminals of each module, but it increases system power consumption; The diode parallel method uses diodes to prevent current backflow and also to balance the current to a certain extent; The current sharing parallel method uses specific current sharing ICs to design power supply parallel outputs, which can achieve accurate current sharing control, but the cost is relatively high.

        Taking switch mode power supplies as an example, when multiple switch mode power supplies are connected in parallel, attention should also be paid to issues such as cable length and interface protection. Inconsistent cable lengths can cause impedance changes and voltage drops, affecting the stability of the output. And the protection of the docking cable interface is to prevent arc light caused by loose joints under high power, high voltage, and high current, as well as to avoid problems such as poor contact of joints and aging of insulation materials, which may lead to a decrease in output power or safety hazards.

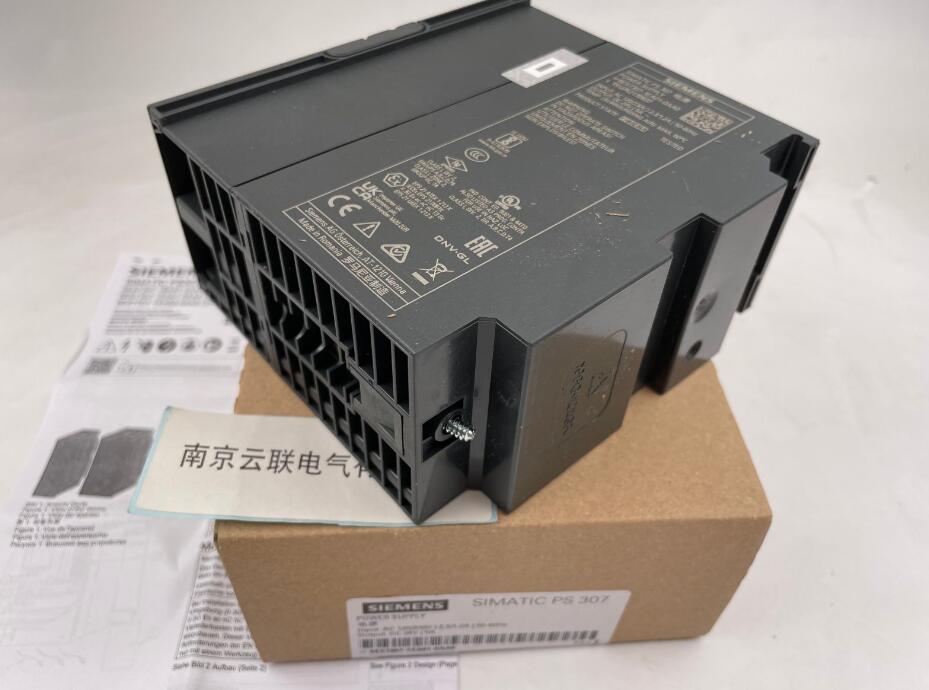

        Power module.jpg
