例如，在自動化生產線上的機械臂，若機械臂在啟停時振動明顯，可通過調節液壓緩沖器的緩沖力，使其運行更加平穩。但在調節過程中，可能會出現緩沖器漏油的情況，這可能是密封件損壞或調節部件未擰緊導致，需及時檢查密封件并擰緊調節部件。
Detailed explanation of hydraulic buffer adjustment method
In modern industrial production and mechanical equipment operation, hydraulic buffers effectively reduce equipment wear caused by impact and ensure stable operation due to their excellent buffering performance. Understanding and mastering the adjustment methods of hydraulic buffers is crucial for improving equipment performance and service life.

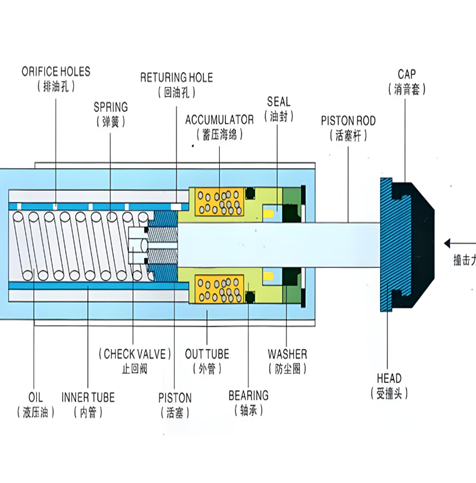

The hydraulic buffer is mainly composed of piston rod, piston, oil storage chamber, throttle hole and other components, and its working principle is based on the flow characteristics of hydraulic oil. When the equipment is impacted, the piston rod is compressed, pushing the piston to move in the oil storage chamber. Hydraulic oil flows from the high-pressure chamber to the low-pressure chamber through the orifice, generating resistance and achieving buffering. The size of the throttle hole directly affects the flow rate of hydraulic oil, which in turn determines the magnitude of the buffering force.
When adjusting hydraulic buffers, the first step is to clarify the buffering effect required for equipment operation. If the buffering force is too small, the equipment will still produce significant vibration under impact; Excessive buffering force may affect the normal operating speed of the equipment. The adjustment steps are as follows: turn off the power source of the equipment to ensure the safety of the adjustment process; Find the adjustment component of the buffer, usually the adjustment screw or knob; Rotate the adjusting component clockwise to reduce the throttle hole and increase the buffering force; Rotate counterclockwise, the throttle hole becomes larger, and the buffering force decreases. During the adjustment process, the adjustment amplitude should not be too large each time. After adjustment, a trial run should be conducted to observe the operating status of the equipment. Multiple adjustments should be made according to the actual situation until the desired buffering effect is achieved.
For example, in an automated production line, if the robotic arm vibrates significantly during start stop, the buffering force of the hydraulic buffer can be adjusted to make its operation smoother. However, during the adjustment process, there may be oil leakage from the buffer, which may be caused by damaged seals or loose adjustment components. It is necessary to check the seals in a timely manner and tighten the adjustment components.
