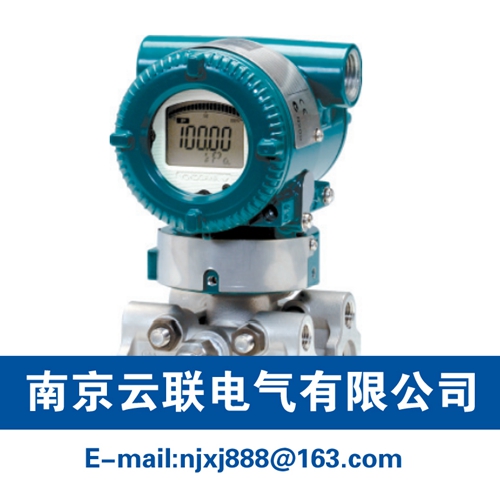

YOKOGAWA橫河 EJX壓力變送器
詳細介紹
EJX系列變送器是橫河電機性能最佳的DPharp壓力變送器。該系列變送器2004年發布，提供技術最先進的解決方案，具有出眾的性能和穩定性。另外，EJX系列產品具有獨特的特點，如獲得IEC61508認證、可選接點輸出、先進診斷、多變量質量流量測量和ISA100無線功能等。
| 型號 | 應用 | 類型 | 膜盒 | 測量范圍 | 最大工作壓力 | |||
| kPa | inH2O | MPa | psi | |||||
 EJX110A | 差壓 | 傳統安裝*1 | F M H V | 0.1～5 0.5～100 2.5～500 0.07～14MPa | 0.4～20 2～400 10～2000 10～2000 psi | 16 25 25 25 | 2300 3600 3600 3600 | |
 EJX115A | 流量 | 內裝孔板 | F M H | 1～5 2～100 20～210 | 4～20 8～400 80～830 | 16 16 16 | 2300 2300 2300 | |
 EJX118A | 帶遠程密封的差壓& 液位 | 凸法蘭 平法蘭 組合型 | M H | 2～100 10～500 | 8～400 40～2000 | 取決于法蘭等級 | ||
 EJX120A | 粗略范圍 | 傳統安裝*1 | E | 0.025～1 | 0.1～4 | 50 kPa | 7.25 | |
 EJX130A | 差壓&液位 | 傳統安裝*1 | M H | 1～100 5～500 | 4～400 20～2000 | 32 32 | 4500 4500 | |
 EJX210A | 液位(封閉式或開放式儲槽) | 平法蘭 凸法蘭 | M H | 1～100 5～500 | 4～400 20～2000 | 取決于法蘭等級 | ||
 EJX310A | 絕(真空)壓*2 | 傳統安裝*1 | L M A B | 0.5～10 1.3～130 0.0175～3.5 MPa 0.08～16 MPa | 0.15～2.95 inHg 0.39～38 inHg 2.5～500 psi 12～2300 psi | 10 kPa 130 kPa 3.5 16 | 2.95 inHg 38 inHg 500 2300 | |
 EJX430A | 表壓 | 傳統安裝*1 | H A B | 2.5～500 0.0175～3.5 MPa 0.08～16 MPa | 10～2000 2.5～500 psi 12～2300 psi | 500 kPa 3.5 16 | 2000 inH2O 500 2300 | |
 EJX438A | 帶遠程密封的表壓 | 平法蘭 | A B | 0.035～3.5 MPa 0.16～16 MPa | 5～500 psi 23～2300 psi | 取決于法蘭等級 | ||
| 凸法蘭 | A B | 0.06～3 MPa 0.46～7 MPa | 8.6～430 psi 66～1000 psi | |||||
 EJX440A | 高壓 | 傳統安裝*1 | C D | 0.25～32 MPa 0.25～50 MPa | 36～4500 psi 36～7200 psi | 32 50 | 4500 7200 | |
 EJX510A EJX530A | 絕壓&表壓*2 | 直接安裝 | A B C D | 8～200 0.04～2 MPa 0.2～10 MPa 1～50 MPa | 1.16～29 psi 5.8～290 psi 29～1450 psi 145～7200 psi | 200 kPa 2 10 50 | 29 290 1450 7200 | |
EJX610A EJX630A | A B C D | 2～200 0.01～2 MPa 0.05～10 MPa 0.35～70 MPa | 0.3～29 psi 1.5～290 psi 7.3～1450 psi 50.8～10150 psi | 200 kPa 2 10 70 | 29 290 1450 10150 | |||
 EJX910A | 多變量壓力變送器 | 傳統安裝*1 | L M H | 0.1～10 0.5～100 2.5～500 | 0.4～40 2～400 10～2000 | 16 25 25 | 2300 3600 3600 | |
 EJX930A | M H | 1～100 5～500 | 4～400 20～2000 | 32 32 | 4500 4500 | |||
| *1: | 傳統安裝為1/4NPT或Rc1/4過程連接(帶過程適配器的1/2NPT或Rc1/2)。 |
| *2: | 絕壓變送器的絕對測量值。 |
EJX110A Differential Pressure Transmitter
The high performance differential pressure transmitter
EJX110A features single crystal silicon resonant
sensor and is suitable to measure liquid, gas, or
steam fl ow as well as liquid level, density and
pressure. EJX110A outputs a 4 to 20 mA DC signal
corresponding to the measured differential pressure.
Its highly accurate and stable sensor can also
measure the static pressure which can be shown on
the integral indicator or remotely monitored via BRAIN
or HART communications. Other key features include
quick response, remote set-up using communications,
diagnostics and optional status output for pressure
high/low alarm. The multi-sensing technology provides
the advanced diagnostic function to detect such
abnormalities as an impulse line blockage or heat
trace breakage. FOUNDATION Fieldbus and PROFIBUS
PA protocol types are also available. All EJX series
models in their standard confi guration, with the
exception of the Fieldbus and PROFIBUS types, are
certifi ed by TüV as complying with SIL 2 for safety
requirement.
